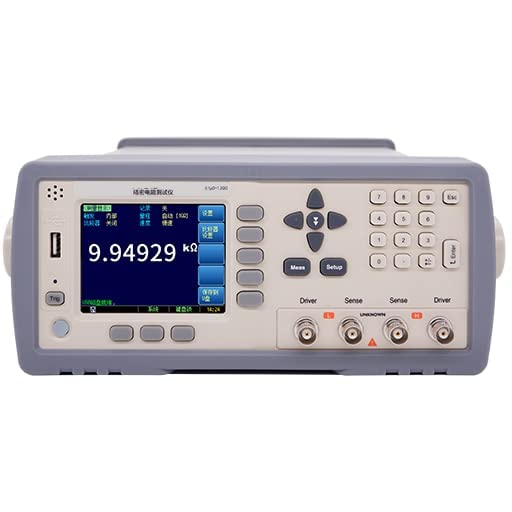

Miniature Benchtop DC Resistance Meter Low Parallel Resistance Tester Ultra Low Resistance Gauge Testing Instrument with Accuracy 0.02% Range 0.1μΩ to 1.2GΩ Handler RS-232 Interface

QIUSUO Miniature Benchtop DC Resistance Meter Low Parallel Resistance Tester Ultra Low Resistance Gauge Testing Instrument with Accuracy 0.02% Range 0.1μΩ to 1.2GΩ Handler RS-232 InterfaceIntroduction： ■ The instrument is the first precision DC resistance tester for testing ultra-low or low parallel resistance in China. It is a miniature benchtop instrument controlled by a high-performance ARM microprocessor. The instrument has 0.02% accuracy and 0.1μΩ resolution, and 0.1μΩ~1.2GΩ measurement range. The instrument has a built-in temperature compensation interface to compensate for errors caused by temperature. ■ The instrument has a built-in 14-step comparator output with 10 passing steps, and all comparator results can be output through the Handler interface. ■ The instrument is equipped with RS-232 interface as standard and uses SCPI (Standard Command for Programmable Instrument) and Modbus protocol (Modbus has become a national standard GB/T19582-2008) for automatic sorting systems to complete fully automated in-line testing. It communicates with computers, PLCs or WINCE devices for efficient remote control and data acquisition.Features:■ Temperature compensation function. ■ High current test function (open circuit voltage <20mV). ■ Compatible with SCPI command set. ■ Superior repeated measurement accuracy. ■ Keypad lock function. ■ Data hold function. ■ Comparator function and data output function. Parameters: ■ Measurement parameters: DC resistance ■ Basic Accuracy: 0.02% ■ Measurement range: 0.1μΩ~1.2GΩ ■ Signal source: Current range: 1μA~1A ■ Range : Eleven ranges automatically and manually ■ Measurement speed: 220 times / sec, 130 times / sec, 50 times / sec, 10 times / sec ■ Display results: direct reading, ΔABS, Δ% and binning results ■ Maximum reading: 1,200,000 ■ Calibration: short-circuit zeroing over the full range ■ Comparator: Built-in 14-position comparator, display and output BIN1~BIN10, HIGH, IN, LOW signal ■ Trigger mode: internal trigger, manual trigger, external trigger and remote trigger ■ Interface: RS232C interface Handler interface (PLC interface) ■ Temperature compensation: Accuracy: 0.2°C Temperature measurement range: 0~80°C ■ Test terminal 4-side shield (including 2 detection and 2 drive terminals) and external shield ground terminal ■ Power requirements Voltage: 198VAC ~ 240VAC Frequency: 50Hz Power: 15VA ■ Dimensions and weight External dimensions (mm): 264 (W)x107 (H)x350 (D) Internal dimensions: 216 (W)x88 (H)x323 (D) Weight: 4kg ■ Accessories ATL501: Four-terminal Kelvin clip test cable ATL108: RS232 communication cable ■ Optional accessory ATL620: Four-terminal clamps for meter resistance ■ Others True color TFT-LCD display Data hold function Chinese and English menu Applications: ■ Measurement of various high, medium and low value resistors ■ Contact resistance of various switches ■ Enameled wire resistance ■ Plug-in contact resistance ■ Relay wire wrapping and contact resistance ■ Transformer, inductor, motor, deflection coil winding resistance ■ Solder contact resistance ■ Wire resistance ■ Metal riveting resistance for vehicles, ships, and aircraft ■ Printed plate line and holeing resistance ■ Characterize the low resistance characteristics of electromechanical components ■ Metal flaw detection, etc.

• Temperature compensation function.
• High current test function (open circuit voltage <20mV).
• Compatible with SCPI command set.
• Superior repeated measurement accuracy.
• Keypad lock function;Data hold function.
