MAX7219 8 * 8 Dot Matrix LED Display Module 8/4/2 in one Digital Tube Microcontroller Control Module for DIY KIT(2X4)
4.5 (22 items)
Limited Time SaleUS$24.92 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211032653 | Release Date | 2026/04/04 | List Price | US$16.61 | Model Number | 211032653 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

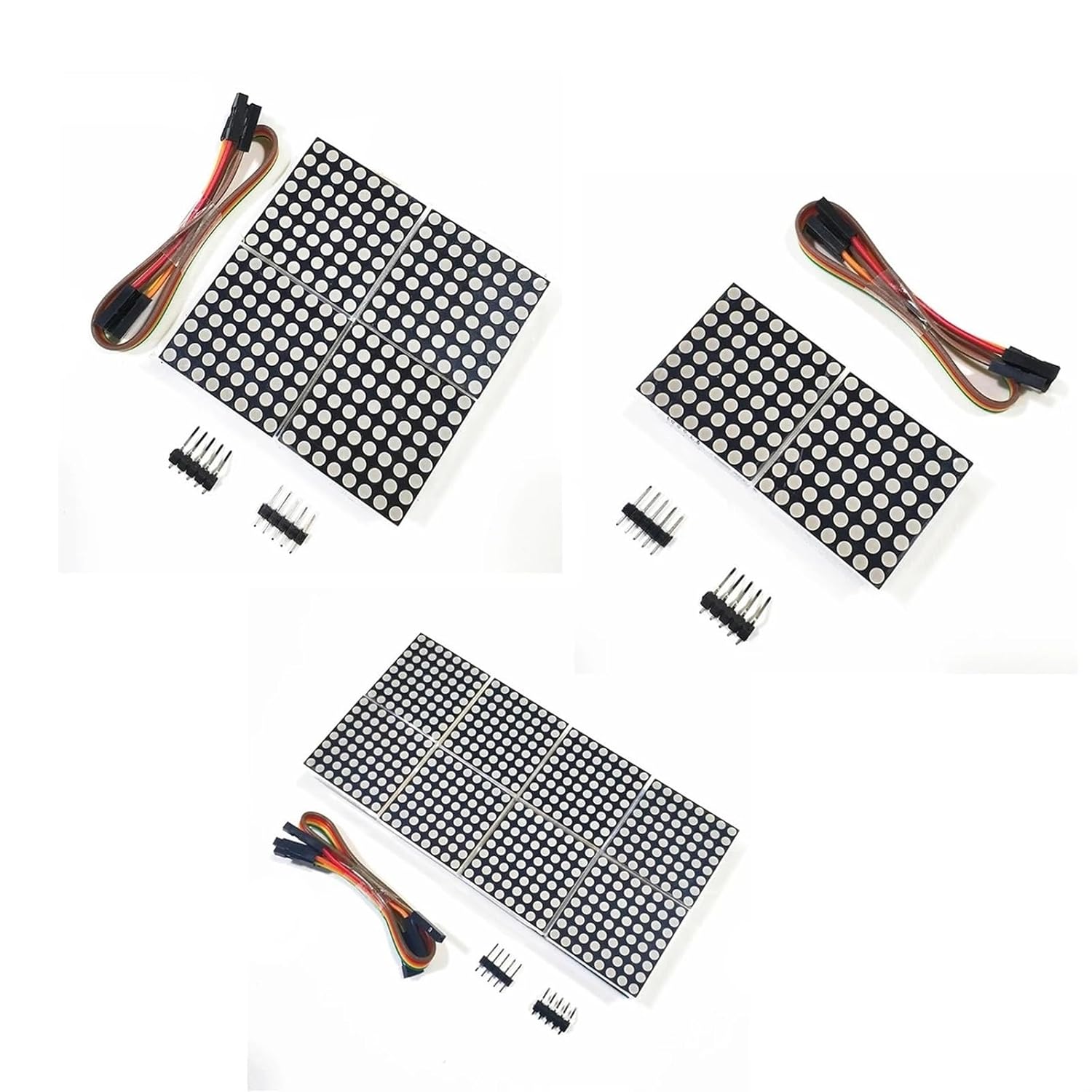

Sensor BlocksProduct Parameters: 1. A single module can drive an 8 * 8 common negative dot matrix 2. Module working voltage: 5 V 3. Module size: 13cm * 6.4cm * 1.3cm 4. With 32 fixing screw holes, hole diameter 3mm 5. Module with input and output interface, support multiple modules cascade Wiring Instructions: 1. The left side of the module is the input port, and the right side is the output port. 2. When controlling a single module, only need to connect the input port to the CPU 3. When multiple modules are cascaded, the input terminal of the first module is connected to the CPU, the output terminal is connected to the input terminal of the second module, the output terminal of the second module is connected to the input terminal of the third module, and so on. Instruction Manual: Take 51 microcontroller as an example: VCC - 5V GND - GND DIN - P2.2 CS - P2.1 CLK - P2.0
- Sensor Blocks
| Color | 2X4 |
|---|---|
| Gauge | 1.0 |
| Model | EDGWHKEAW |
| Pitch | 1 Inches |
| Brand Name | EDGWHKEAW |
| Part Number | EDGWHKEAW |
| Manufacturer | EDGWHKEAW |
| Connector Type | Clamp |
| Specification Met | UL |
| Number Of Contacts | 1 |
| Item Dimensions W x H | 1"W x 1"H |
