60 Plates Brazed Plate Heat Exchanger, 3.02m2 capacity 316L Stainless Steel Wort Chiller

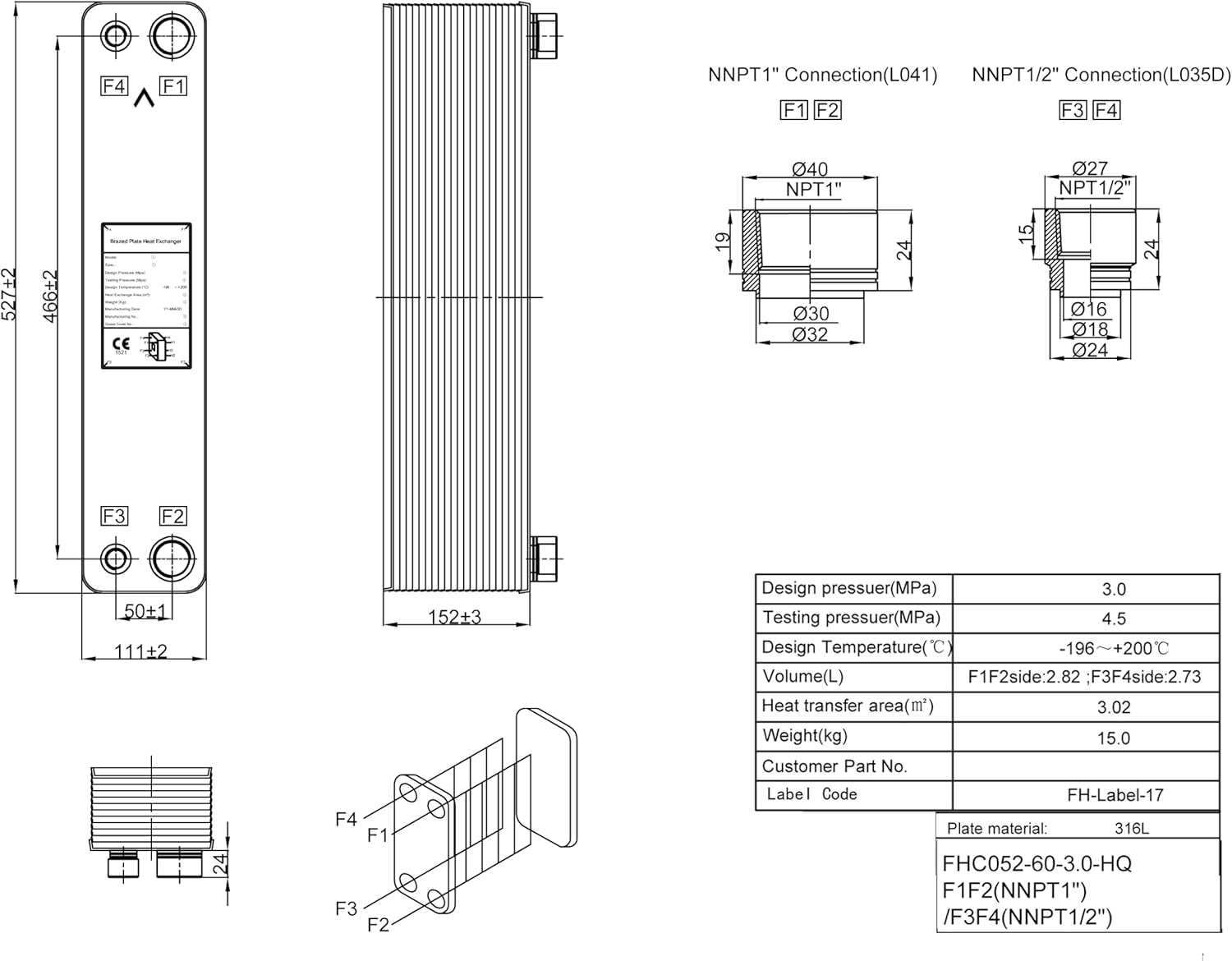

60 Plates Brazed Plate Heat Exchanger, 3.02m2 capacity 316L Stainless Steel Wort ChillerItem No.:FHC052-60-3.0-HQMaterial: 316L Stainless SteelHeat Transfer Area: 3.02m2Design Pressure:3.0 Mpa(435 psi)Test Pressure: 4.5 Mpa(653 psi)Design Temperature:-196~+200CVolume(L):F1F2side:2.82 ;F3F4side:2.73Refrigerant port: 1/2" NPT female threadWater port: 1" NPT female threadNet Weight:15KG( The plate heat exchanger is a highly-efficient device. It is made of 60 plates of 316L stainless steel that have been brazed together with pure copper in an oxygen-free furnace.The port can be customized by your request. )Drawing:Application Focus:Condenser,Evaporator,Subcooler,De-super heater,Air Dryer,Chiller,Heat Pump,Cascade system,Indirect RefrigerantVariety of Applications:Wall hung boilers,Pool heating,Beverage coolers, Laser cooling,Power generation,Mobile oil cooling,Refrigeration oil cooling,Cutting oils, Hydraulic press, CNC, Petrochemical, Industrial process, Space heating,Domestic hot water, Heat reclaim,District heating/ cooling, Steam heatin

• High-efficiency heat transfer performance: Plate heat exchanger adopts high-efficiency heat transfer plate design with large heat transfer area and small volume, which can realize high-efficiency heat exchange in a shorter period of time.
• It is suitable for a variety of industrial and commercial applications, such as HVAC, food processing, chemical industry and other fields.
• Modularized design: The product adopts modularized design, which is convenient for disassembly and cleaning. Users can flexibly adjust the number of plates according to actual needs, thus realizing different heat transfer capacity and flow rate requirements, which greatly improves the flexibility of use and convenience of maintenance.
• Durable materials: the plates are made of high-quality stainless steel or titanium alloy, with excellent corrosion resistance and mechanical strength. The sealing gaskets are made of high-temperature resistant and anti-aging rubber materials to ensure the sealing effect in long-term use.
• Energy saving and environmental protection: By optimizing the fluid channel design, low pressure drop and high heat transfer efficiency are achieved, thus reducing energy consumption. The product complies with environmental standards and helps reduce carbon emissions, making it an ideal choice for green energy saving.
• Widely used scenarios: Whether it is in cooling systems and heating systems in industrial production, or air conditioning systems and water treatment systems in commercial buildings, this plate heat exchanger can provide stable and reliable performance. Its versatility makes it an excellent choice for all types of heat exchange needs.
