4 Pole Contactor 120v Coil Normally Open (NO) 110/120VAC Coil, Motor Load 40a and Lighting Load 60A, AC Contactor - Bundle with Programmable Timer Relay and DIN Rail 35 x 150 mm

ABOUT CONTACTOR40 Amp 4 Pole Normally Open IEC 400V Contactor for home or industrial uses.With applications in lighting, motor and switching.Technical Specifications:– Contactor IEC 400V– Contactor Type NO– Inductive Load: 40A– Resistive Load: 63A– DC Load: 30A, @ 24VDC– Power status indicator– Number of Poles 4– Coil Volts: 110/120VAC, 50/60 Hz– Coil Load: Inrush 52VA, Sealed 10VA– IEC AC Rate: AC-1, 10 kW. AC-3, 8 kW– Electric e strength: 4 kV– Operating Temperature: -30…+70 °C (-22…+158 °F)– 1 HP @ 1 Phase - 120V– 2 HP @ 1 Phase - 230V– 5 HP @ 3 Phase - 208V– 5 HP @ 3 Phase - 230V– 10HP @ 3 Phase - 480V– Weight: 0.88 lb (0.42 kg)– Width: 2.2" (54 mm)– Height: 3.3" (85 mm)– Depth: 2.5" (67 mm)– CE approved 61095, UL pending– Base or DIN 35mm mountWiring:Solid Conductor: 25 mm2 Max torque 0.6 NmStranding Conductor: 16 mm2, Max torque 0.6 NmABOUT TIMER7 Days 24 Hours Electronic Programmable Timer for better control in home or industrial installations.– 7 days, 24 hours accuracy to the minute– Programmable timer mode: MAN-AUTO-OFF– 3 year backup memory– 16 separate ON/OFF programmable settings– Integrated battery backupABOUT DIN RAILDIN Rails are the standard mounting support for any electromechanical component, device or equipmentdesigned using the DIN specifications adopted by European (EN) and international (IEC) standards.The rail features slots throughout its length making it easy to attach to a panel, wall or equipment.For support of mini circuit breakers, contactors, auxiliary relays, terminal blocks, etc.– Width: 35mm (1.375”)– Length: 150mm (6”)– Thickness: 5mm (0.2”)

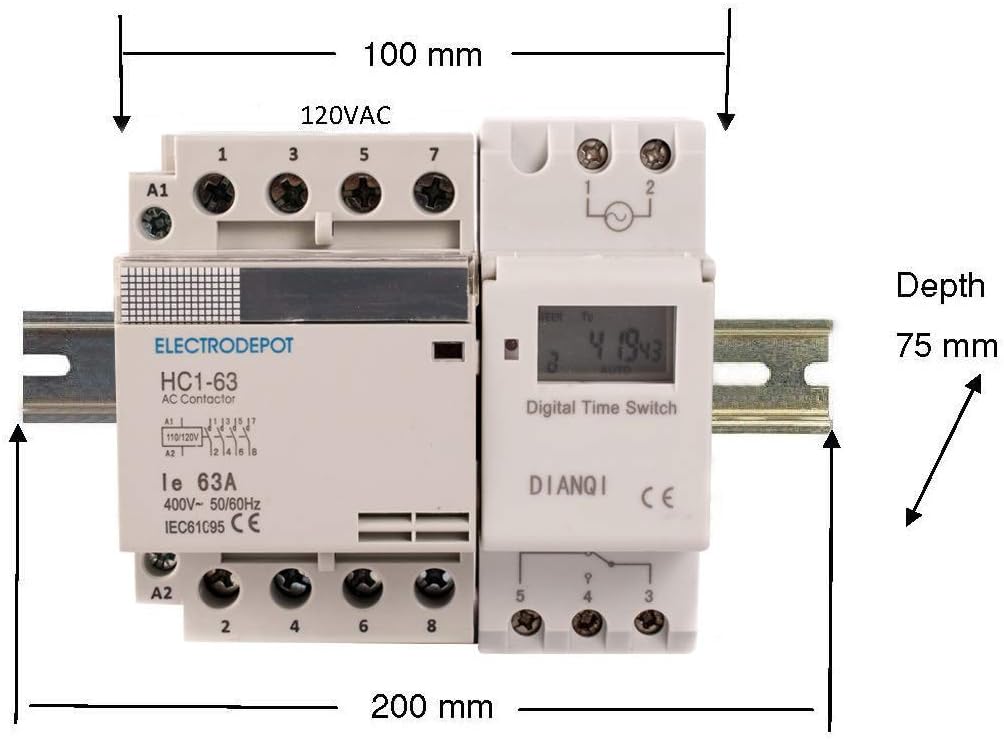

• 4 Pole Contactor Timer and Rail 3 ITEMS - One (1) 40A 4 Pole Normally Open (NO) Contactor with power status indicator; one (1) 7 Days, 24 Hours Programmable Timer and one (1) compatible Slotted Steel Zinc Plated 35mm x 150mm DIN Rail for immediate installation
• AC Contactor Details - Lighting, motor or switching. AC-1 for resistance furnaces, incandescent lamps or electric heaters; and AC-3 for air conditioners, compressors or fans. 24/120/220/277 V, with an energy saving, silent and no humming coil
• Contactor 120v coil – Contactor IEC 400V. Coil Voltage 110/120VAC, 50/60 Hz; Coil load Inrush 52VA, Sealed 10VA. Inductive/Motor Load: 40Amp, Resistive/Incandescent Load: 63Amp. DC Load: 30Amp @ 24VDC. Compatible with 20 Amp, 30 Amp, 32 Amp, 40 Amp, 50 Amp, 60 Amp and 63 Amp loads. Power Lug Terminal Capacity AWG # 4

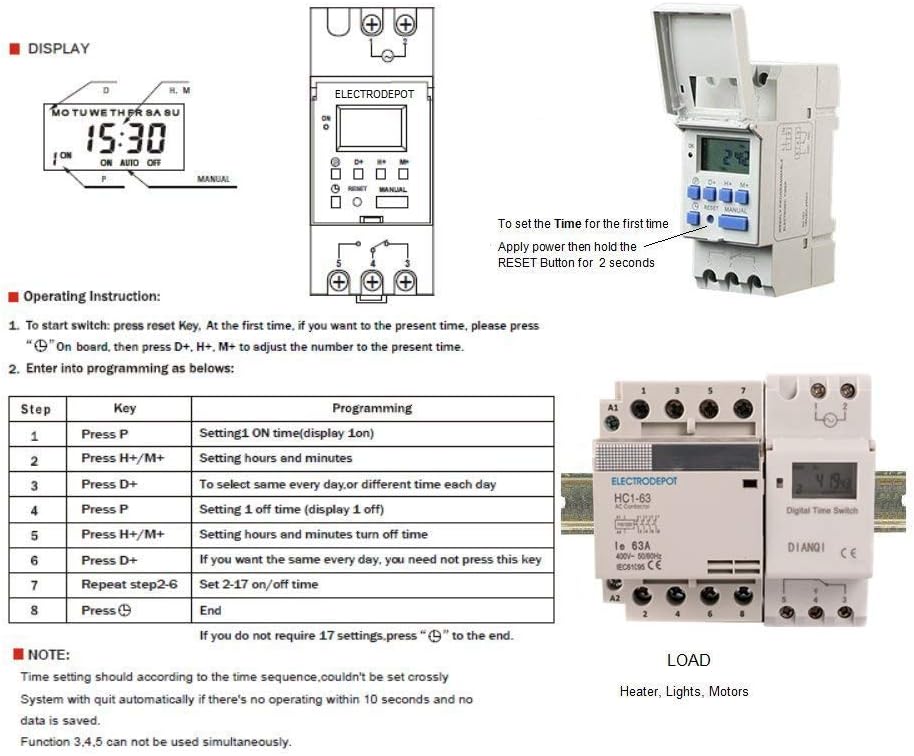

• Programmable Timer Relay - 24/7 Electronic Programmable Timer with to-the-minute accuracy for more control. Digital time switch that features MAN-AUTO-OFF programmable timer mode, 3 year backup memory, 16 separate ON/OFF programmable settings and integrated battery backup
• DIN RAIL – Standard mounting support for any electromechanical component, including contactors, using the DIN specifications adopted by European (EN) and international (IEC) standards. Standard width 34.9mm (1.375”) length 150mm (6") and thickness 5mm (0.2”)
