2D Measuring System, Tram Gauge Auto Body Frame 2D Measuring System Universal High Precision Measurement Tool for Construction, Machinery Maintenance Aluminum Retractable Measure Equipment

Usage1. When measuring small size within 900mm, no drawing measuring rule is required. Use slide rule according to the position of the ranging point.2. The level (in the level of the level display) shows the measurement. The measurement reading is read on the slider.3. When measuring a size of about 1800 mm, the inner rod that is stretched out and stretched is used, and measured according to the level displayed by the level. The measurement reading is read on the slider holder. Smoothly pull the ruler during the measurement (in the level of the level display).4. The vertical ruler is directly at the measuring point, adjustable up and down, and is screwed to the vertical position to maintain the level (in the level of the level display).Specification:Product size (with aluminum box): 102×20×10cm/ 40.15×7.87×3.9""Material: Aluminum alloyColor: Blue-blackMeasuring range, X axis: 200mm~2250mm/ 7.87-88.6""Y axis: 20mm~150mm (or 340mm)/ 0.8-5.9"" OR 13.4""Z axis: 20mm~150mm (or 340mm)/ 0.8-5.9"" OR 13.4""Packing List:1. Main scale2. 20-150mm scale3. 20-340mm scale4. Screw thread probe5. Magnetic probe6. Magnetic probe and lengthen base7. 3D adapter8. Large positioning probe9. Longitudinal positioning probe10. Small positioning probe11. Size nut probe12. English manualNote:1. Please read the instructions before use.2. Please handle with care when using. It is strictly forbidden for heavy objects to touch.3. Do not touch fire, rubber water, asphalt waiting for corrosive substances. If you accidentally touch a liquid such as paint, immediately rinse it off with a small amount of water and wipe the measuring ruler clean.

• 【Accurate Measurement】High precision 2d measuring system is an economical, practical point to point measurement tool. It is aluminum retractable measure equipment, it has a very high measurement precision. Its measurement error is less than 1mm, ensuring high accuracy of detection and measurement, making your work more efficient.

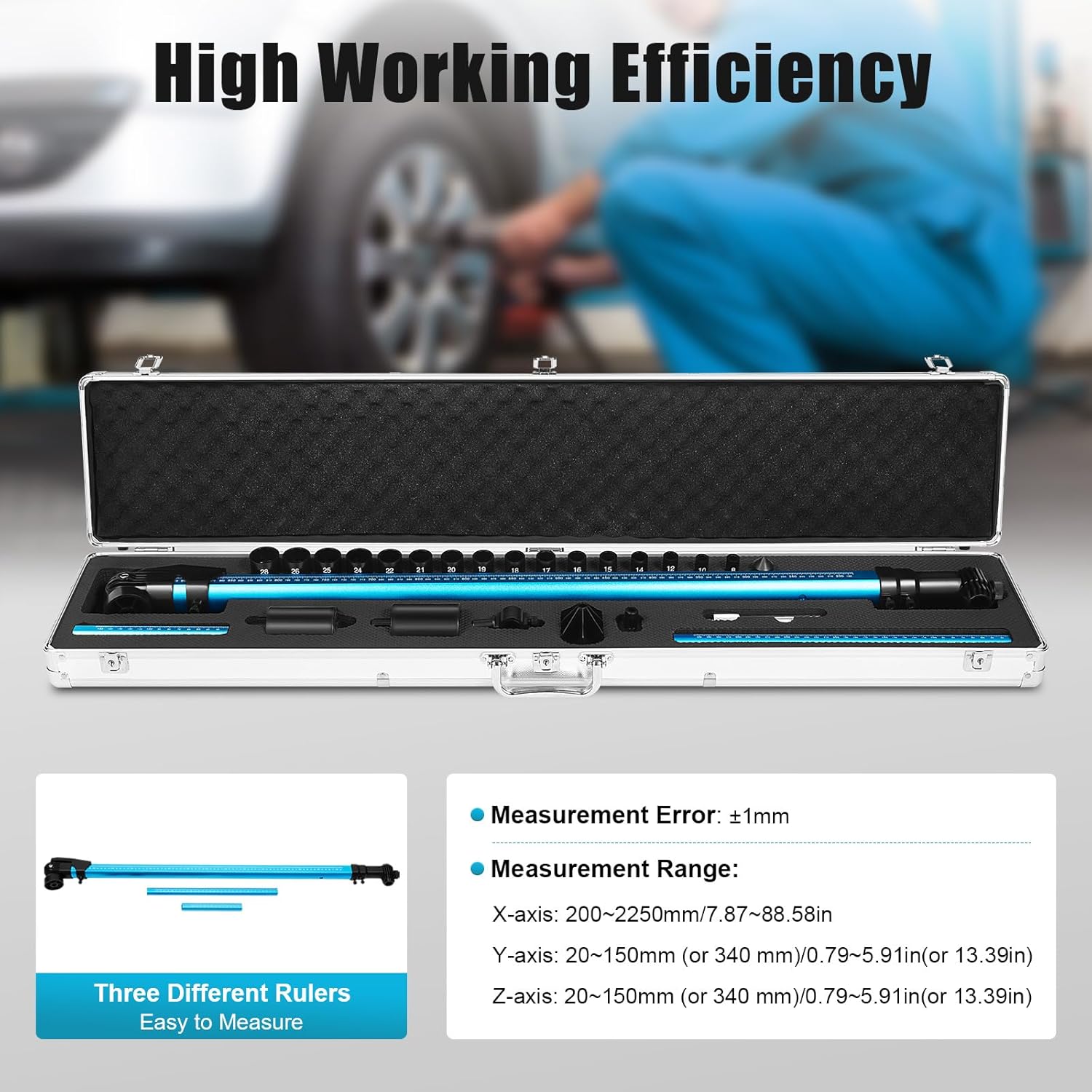

• 【What You Will Get】Here 2d measuring system package includes main scale, 20-150mm scale, 20-340mm scale, screw thread probe, magnetic probe, magnetic probe and lengthen base, 3d adapter, large positioning probe, longitudinal positioning probe, small positioning probe, size nut probe, english manual.
• 【All-round Measurement】X axis: 200mm~2250mm/ 7.87-88.6"; Y axis: 20mm~150mm (or 340mm)/ 0.8-5.9" OR 13.4"; Z axis: 20mm~150mm (or 340mm)/ 0.8-5.9" OR 13.4". This measuring ruler making it suitable for measurement work of a variety of different sizes to meet various needs. needs of various scenarios.
• 【Multi-dimensional Application】This auto body frame 2d measuring system is not limited to two-dimensional measurement. Through the adapter connector, you can also expand to three-dimensional measurement to meet the measurement needs of different occasions. Whether it is construction, machinery maintenance, or other fields, it can be easily handled.
• 【Lightweight and Portable】This measuring device is made of aluminum alloy, which is not only high in strength, but also small in size and light in weight. One person can easily complete the measurement task independently, which improves the flexibility of operation. The high-precision measuring ruler is designed and manufactured to improve the accuracy and convenience of inspection and measurement during accident vehicle repair.
