100Amp 110V Automatic/Manual Transfer Switch, Mini ATS 4Pole W2R Solar Auto Dual Power Changeover Switch for Home, Din Rail Mounted 50/60Hz CE Certified for Rv, Lv, Cn Public/Backup Power
4.3 (75 items)
Limited Time SaleUS$25.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210751591 | Release Date | 2026/04/02 | List Price | US$17.20 | Model Number | 210751591 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Functions and Features: Mini ATS 100amp 2pole dual power auto transfer switch W2R is a PC-level infrequent switching switch, mainly used for automatic or manual conversion of two power supplies, and can test whether the common power supply or backup power supply is normal. When the common power supply A is abnormal, mini ats the backup power supply B is quickly switched and put into use within 0.05 seconds to ensure the continuity, reliability and safety of power supply. common power supply returns to normal, 63Amp ats transfer switch automatically switches from the backup power supply to the common power supply. Both power supply A and B can be connected to the mains/photovoltaic

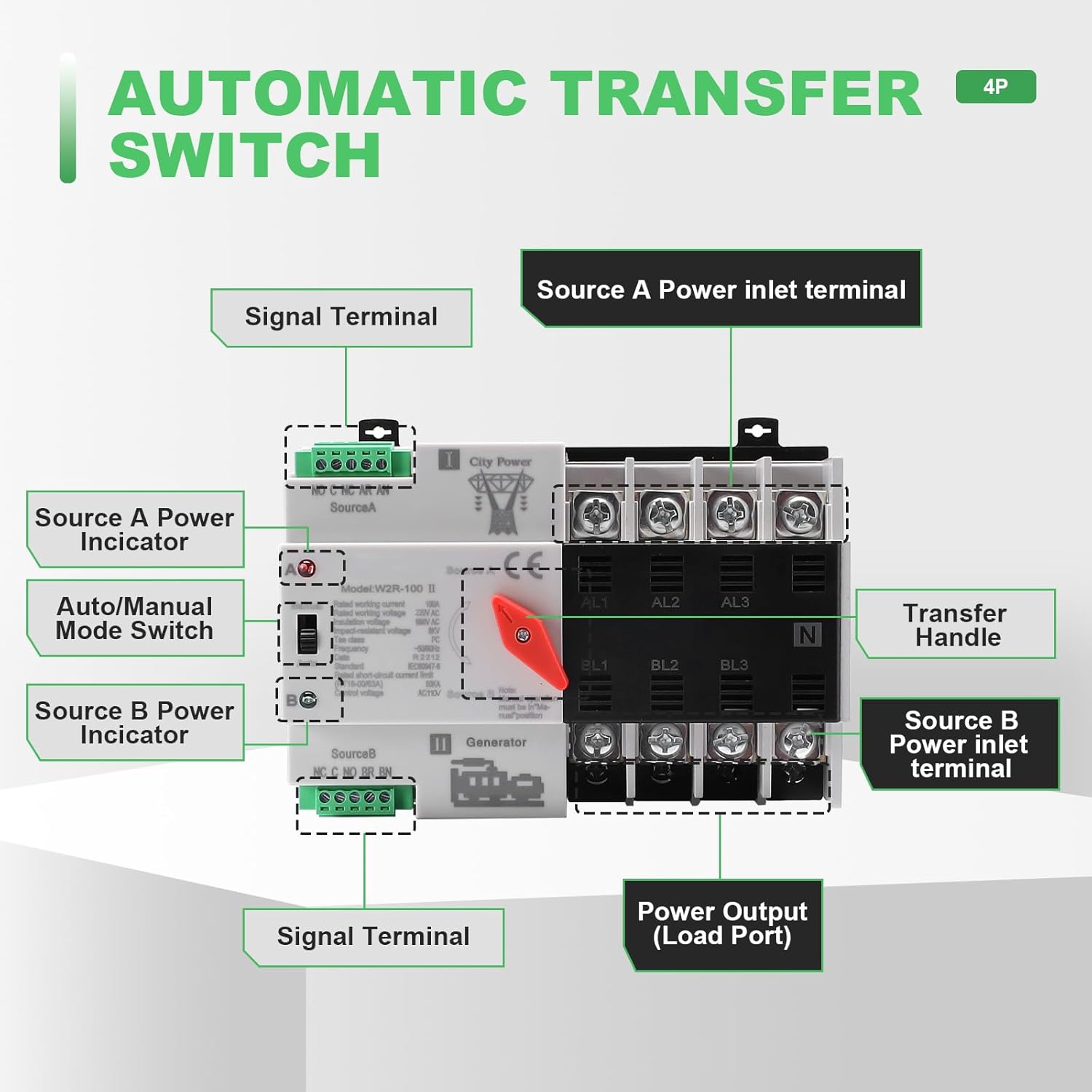

- AUTOMATIC/MANUAL DUAL MODE SWITCHING: AUTOMATIC MODE: ac 110v automatic transfer switch use the automatic mode, the left switch must be in the Auto, and the red handle on the right should point to Source A. When the normal power source A is working normally, A (red light) is always on; when the normal power source A is abnormal, A (green light) goes out and switches to the automatic power source B within 0.05 seconds, and B (green light) is on. When the normal power source A returns to normal, it will automatically switch from the backup power source B to the normal power source A
- MANUAL MODE: 4P 100A automatic changeover switch use manual mode to make sure the left switch is in Manual. If you choose power source A, operate the red switch handle on the right to point to Sonrce A, and LED indicator A (red light) will be on. If you choose power source B, manually operate the red switch handle on the right to point the switch to Source B, and LED indicator B (red light) will be on

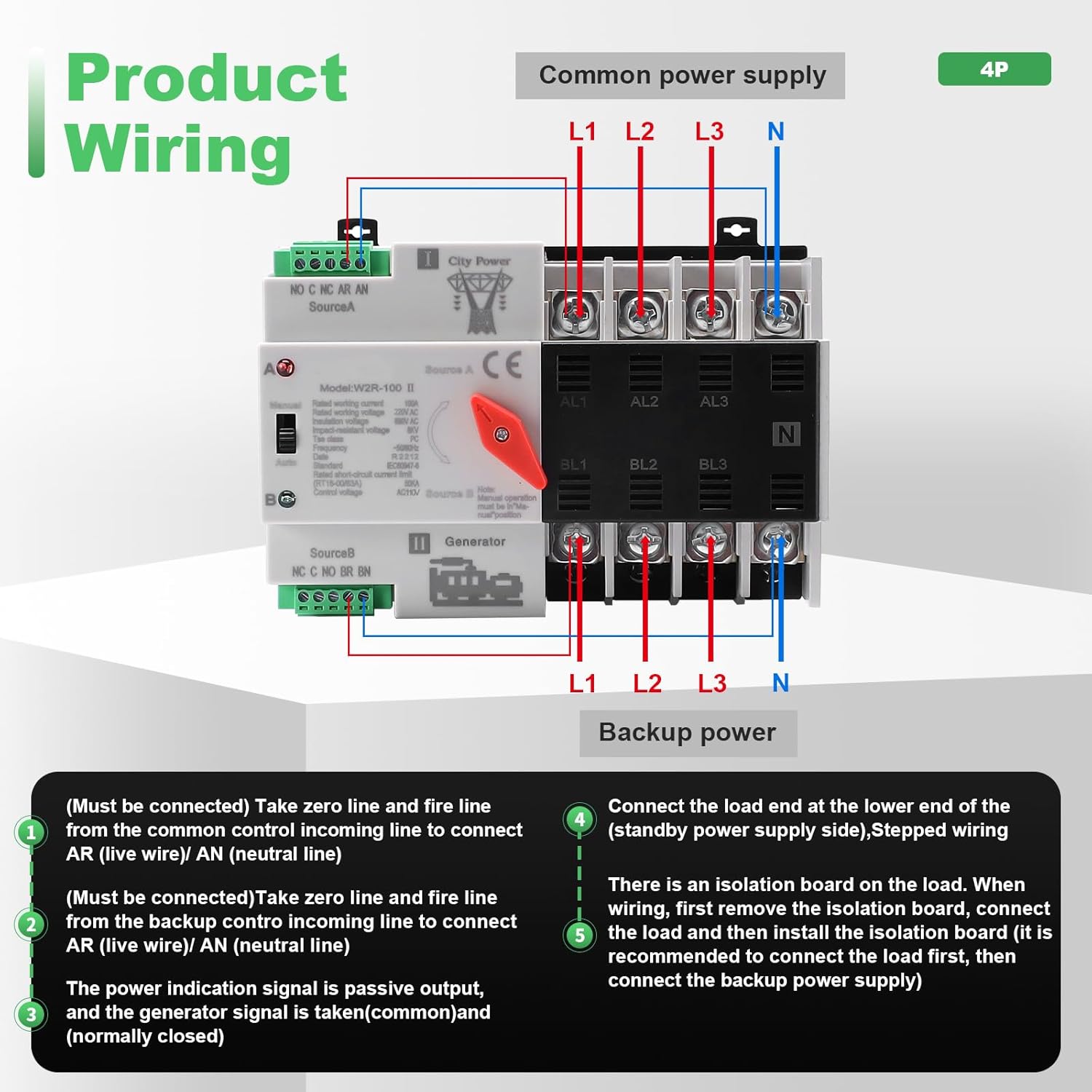

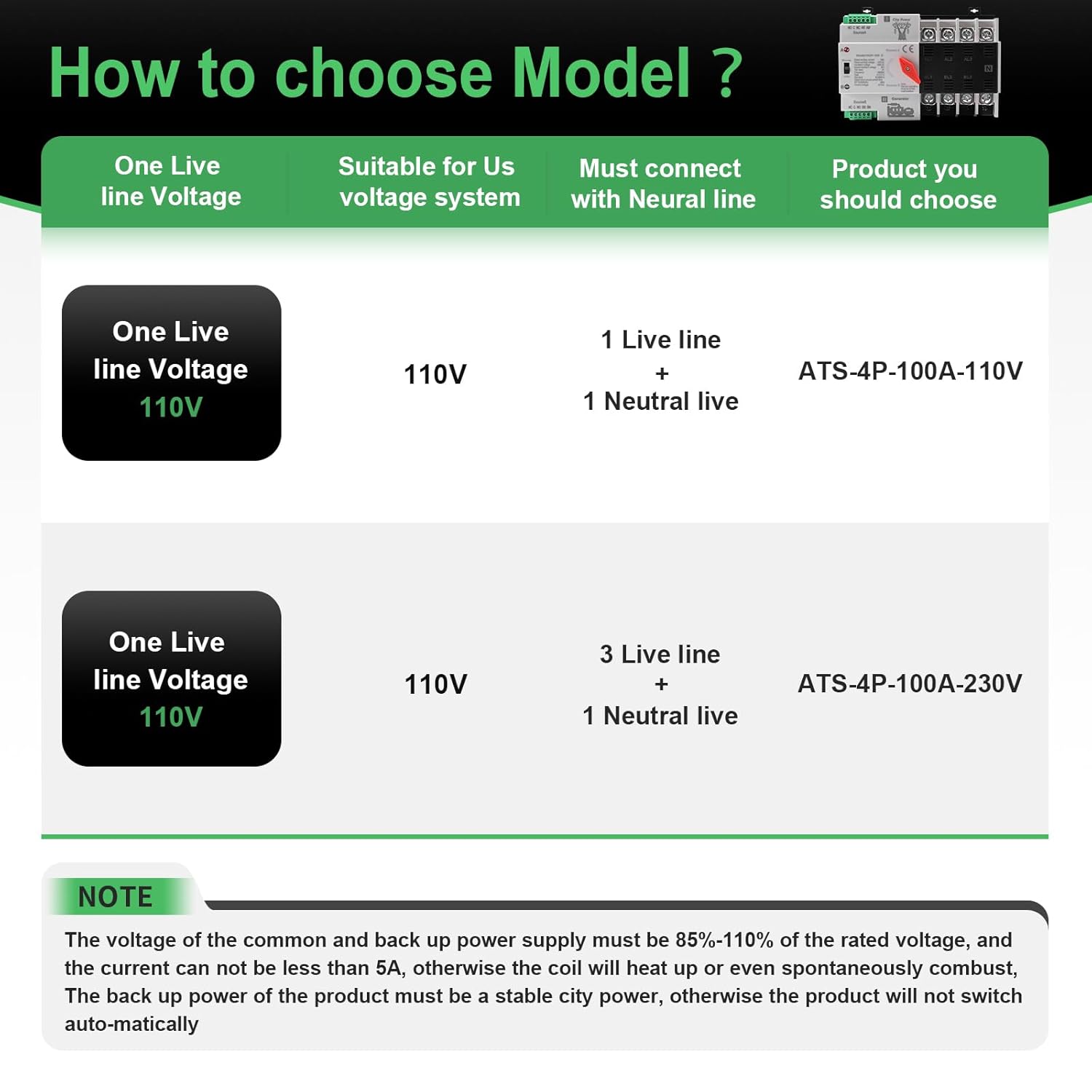

- 110V OVER AND UNDER-VOLTAGE PROTECTION: 4P dual power automatic transfer switch 110v designed for home track installation, mini ats transfer switch cnc W2R 4P , the input terminal can be connected to 1 neutral wire (N) 3 live wires (L), dedicated to PZ30 distribution box. This series of automatic transfer switches is suitable for 50/60Hz dual power grid. The working current is between 100A. 110V/50Hz Undervoltage value: 85V, Recovery value: 95V; Overvoltage value: 145V, Recovery value: 130V (± 5V)
- DIN RAIL MOUNTING: Din rail automatic transfer switch Compact design Applies to 35mm rail, Spring buckle Tolerant to 5Hz~150Hz mechanical vibration, ATS change over switch Through the DIN rail standardized design, Ats achieves industrial-grade reliability with ready-to-install and worry-free maintenance
- MULTI-SCENARIO APPLICATION：This dual-power automatic transfer switch (ATS) ensures a stable power supply and is suitable for use in situations where power outages are unacceptable. ac 110v automatic transfer switch is suitable for home power protection, small shops/convenience stores, medical equipment power supply, data centers and emergency systems, uninterrupted production line operation, photovoltaic microgrids, and indoor Rv, Lv, Cn Public/Backup Power and outdoor generators
- QUALITY ASSURANCE, WORRY-FREE AFTER-SALES SERVICE: 4Pole 100Amp 110V AC W2R Mini ATS Automatic/Manual Transfer Switch Made of high-strength PA6 engineering plastic, with a flame retardant rating of 94V-2 and an impact strength of 8kJ/m², it is lightweight and sturdy, with a mechanical life of more than 8,000 cycles and an electrical life of more than 1,500 cycles. If you encounter any problems during installation or use, our professional engineers will answer your questions.
